Our range of products

Product categories

Our products

Product category: Weighing technology (mobile / stationary)

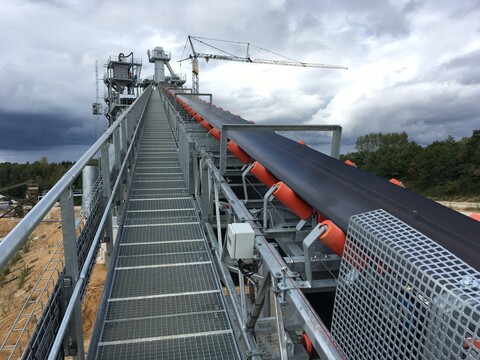

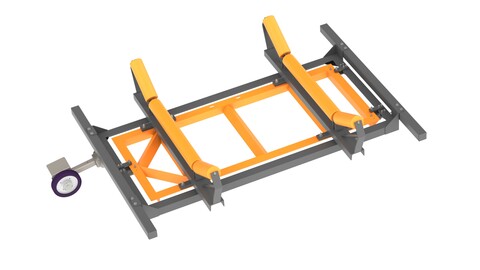

Built-in belt scales

Belt scales from MTS weigh exactly, are robust and solidly manufactured and available in numerous variants – suitable for belt widths from 400 mm and feed rates from 2 t/h, in legal-for-trade and non-legal-for-trade versions.

The experience of over 30 years has gone into the development of the MTS belt scale series EBW 10, EBW 20 and ESW 2.3. As a manufacturer, MTS MessTechnik also offers the possibility of adapting the belt scales for special requirements.

For example, belt scales in mobile screening and crushing plants are exposed to significantly higher loads than in stationary belt conveyors. The EBW 10-HD Mobile belt scale is especially designed for this mobile plants: a special, reinforced weighing frame with a robust load cell provides effective protection during operation and also during transport of the plant.

Use:

In stationary belt conveyors
In mobile screening and crushing plants
For process control
For inventory control
For truck preloading
For legal-for-trade weighings

Features:

Extremely robust and corrosion resistant
Load cells made of stainless steel with protection class IP 69K
Load cells with transport and overload protection
Low installation height
Easy installation – retrofittable
Can be used in almost every belt conveyor
Low maintenance effort

More Less

To the belt scales from MTS

Behälter Klappenwaage CDW Standardversion

Product category: Weighing technology (mobile / stationary)

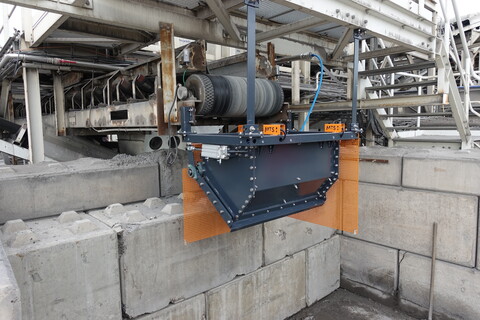

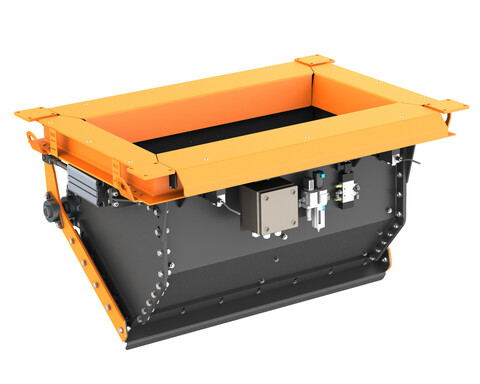

Conveyor discharge weigher CDW

The conveyor discharge weigher CDW is ideally suited for the continuous recording of throughput quantities from 25 m³/h. The scale is installed at the discharge point of a belt conveyor and collects the conveyed material in the hopper, where it is weighed.

This static weighing achieves a very high measuring accuracy of +/- 0.2%. The CDW is often used to determine the quantity of recycled metals or other valuable raw materials.

So, the CDW scale is an addition to classic built-in belt scales if these cannot be used due to the low feed rate, the bulk materials properties or the installation situation.

Use:

Process control
Batch processes

Features:

Ideal for internal process control
For free-flowing bulk materials
Easy to integrate into the process route
Installation at the discharge point of belt and conveyor systems
Very good measuring accuracy
For capacities up to 25 m³/h
Low maintenance effort

More Less

To the conveyor discharge weigher from MTS

Product category: Weighing technology (mobile / stationary)

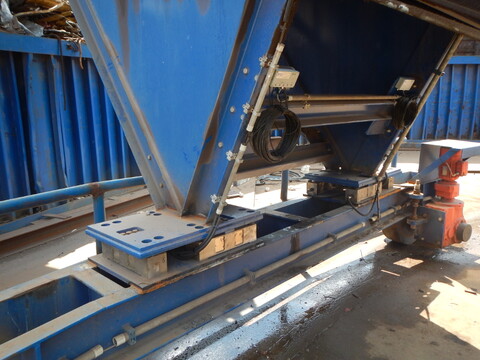

Weighing of apron conveyor and containers with LMB 490

The weighing of a pivoting apron conveyor and a movable container – these are two of many applications which a load cell proves its worth. In all cases, extreme robustness and stability, even against dynamic forces/ lateral forces, are required.

The extremely robust load cells LMB 490 are used for such heavy-duty applications. The load cell is firmly mounted without any horizontal or vertical movement. The LMB 490 can therefore be used especially in mobile installations.

Thus, weighing of apron conveyors and movable containers is possible – despite the very high loads and transverse loads occurring there.

Use:
Weighing of

pivoting apron conveyors
movable vessels/ containers
charging machines
special applications

Features:

Extremely robust – even with dynamic forces / lateral forces
Low installation height
For heavy-duty applications
For nominal loads from 40 to 200 t
Easy installation due to plug-in connection
Free from backlash installation – no movable parts

More Less

To the heavy-duty load cell LMB 490

Product category: Weighing technology (mobile / stationary)

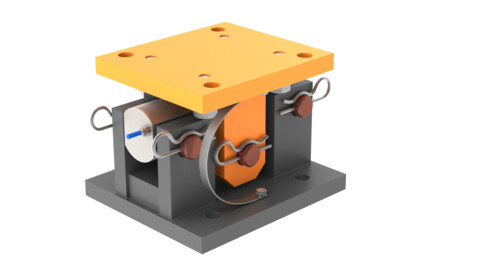

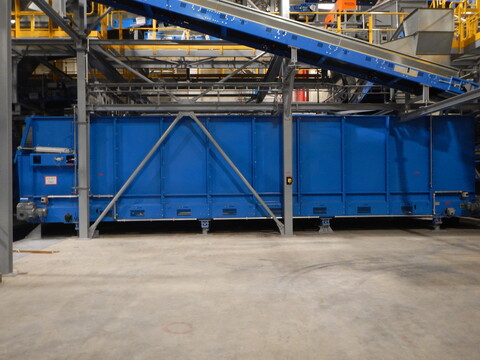

Bunker weighing with VC 3500/ LCM 460

The VC 3500 and LCM 460 are weighing modules with a movable top plate and integrated lift-off protection. They are ideally used for continuous weight and quantity measurement in silos and vessels or for weighing of bunker systems with discharge activator.

The modules can be mounted directly between the bunker and substructure. Although, the special design of the module ensures optimal force transmission and high lift-off and lateral load safety – without additional steering and lashing mechanisms.

Use:

Filling level and inventory control
For bunkers – also with discharge activator
For mixers and vessels with agitators
Especially for outdoor applications
For precise silo weighing

Features:

Built-in module with integrated lift-off protection
With precise double-ended shear beam load cell made of stainless steel
For nominal loads from 2 to 200 t
Expansions and inclinations are compensated
Replacement of load cell without removing module
Transport protection against shock loads
LCM 460 in the version up to 20 t legal-for-trade according to OIML R60

More Less

To the weighing module VC 3500/ LCM 460

About us

Company details

We, MTS MessTechnik Sauerland GmbH from Olsberg, offer weighing and dosing technology for bulk materials of all kinds. With our know-how, we develop and realize standard and customer-specific weighing solutions for industrial applications. The products are adapted to the requirements of the application and the customer. "We do ist right!" - with this slogan MTS MessTechnik Sauerland GmbH has been developing its own weighing systems since 2003, such as the belt scale series (ESW 2.2/ 2.3, EBW 10, EBW 20), the ImpactWeigh impact scales, the DosWeigh and DiffWeigh series of dosing scales, the CDW conveyor discharge weigher and platform scales, all of which are manufactured in Germany.

Comprehensive services features from consulting, installation and commissioning to maintenance and support for legal-for-trade scales complete our profile. MTS is certified in accordance with ISO 9001:2015 and has a repair provider approval according to § 54 of MessEV and consequently the authorization to perform repairs and service on legal-for-trade weighing systems..

Our customers come from a wide range of industries, such as wood processing companies, foundries, recycling industry, pit and gravel plants, the building materials industry, chemical plants and plant construction.
